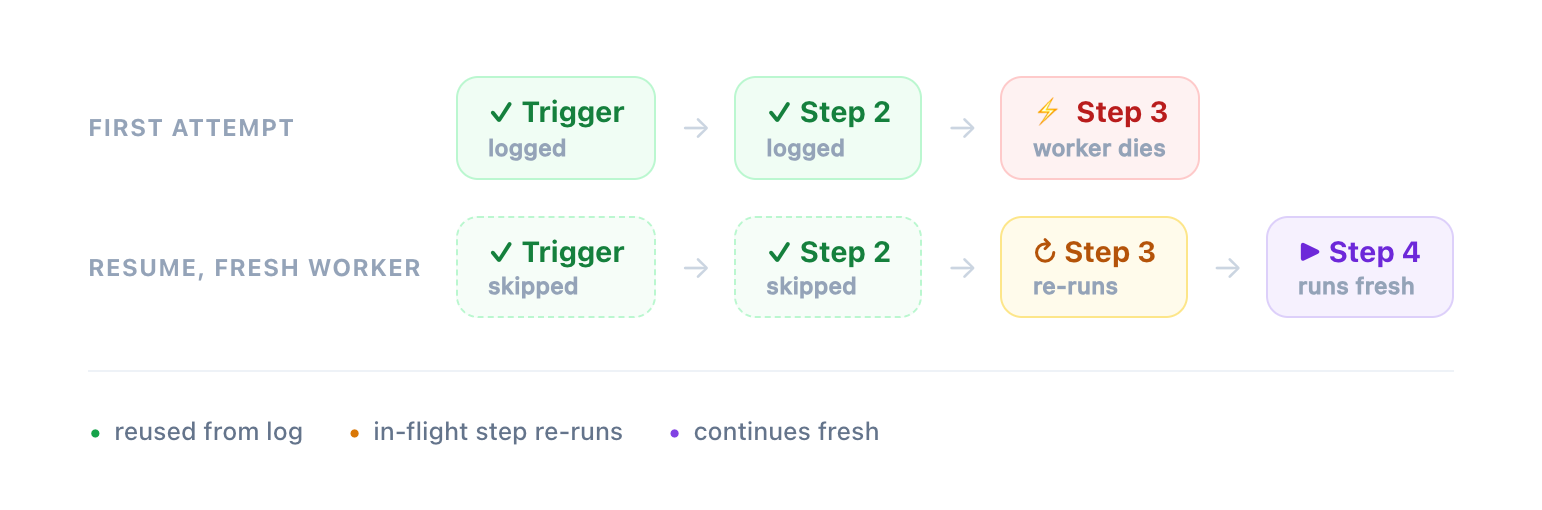

Replay and skip: on the first attempt the trigger and step 2 are logged before the worker dies at step 3; on resume a fresh worker skips the logged trigger and step 2, re-runs the in-flight step 3, then continues fresh from step 4 Without it, a worker that dies mid-flow would restart the whole run from the trigger and re-send emails, re-charge cards, and re-call APIs. Instead, a fresh worker reuses the saved output of every finished step and runs only the first step that had not completed. The same mechanism covers crashes, deploys, long pauses, and retries.

​
The run log

Every flow run has a run log: one compressed checkpoint file with everything needed to resume the run on a fresh worker. What is in it:
  • One entry per finished step, keyed by step name: input (secrets hidden), output, status, duration, and the error message for failed steps.
  • Loop iterations and router branches use the same shape, nested under their parent step.
  • Run-level tags.
When it is written:
  • Once at the start, before the first step runs.
  • Every 15 seconds while the run executes, from a background loop that snapshots whatever finished since the last write.
  • Once on the final state (success, failure, or pause).
Each write overwrites the previous copy. Only the latest checkpoint is kept, and the file is compressed before upload.

​
Replay and skip

Resume is not a special path. Each time a worker starts a run, it walks the flow graph from the trigger and asks at every step: is this step’s output already in the log?
  • If yes, and the step finished (SUCCEEDED or PAUSED), the engine returns the saved output and moves on.
  • If no, the engine runs the step, records its output, and continues.
On the first run the log is empty, so every step runs. After a resume the log is full up to the interruption, so the engine skips through all of it and runs only what came next. The most a crash can lose is the single step that was running when the worker died. That step runs again from the last checkpoint, and everything before it is skipped.

​
What triggers a resume

Every interruption resolves through the same replay path. Only the trigger differs.
  • Worker crash or deployment. The queue reassigns the run to another worker, which loads the log and replays.
  • Paused step. The piece creates a waitpoint. When the waitpoint fires, a resume job is queued and a worker replays the run.
  • Retry from a failed step. The same log is reused. The run is re-queued and a worker replays from the failure point.
  • Normal progression within one worker. Same replay model, without leaving the process.
